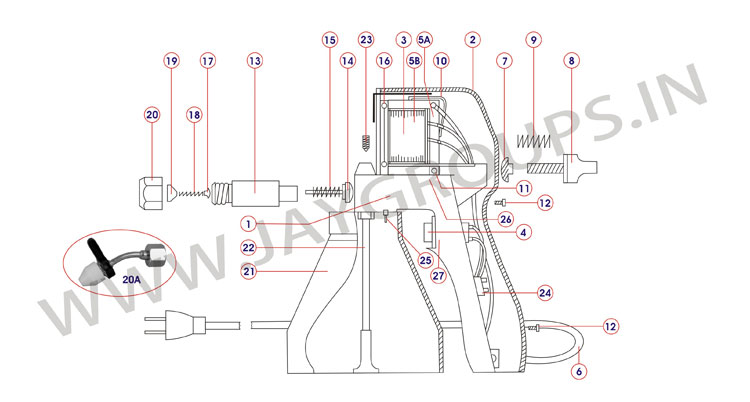

  PARTS LIST FOR : TEXTILE CLEANING SPRAY GUNS CHOKHO -UB16 / UB16A
Part No.
Item
1
Gun Housing
2
Gun Housing Cap
3
Inductor Coil (220V/50Hz, Coil Only)
4
Trigger Switch Assembly
5A
I Core
5B
E Core with Coil
6
Electric Wire
7
Buffer Nut
8
Pressure Control Knob
9
Pressure Control Knob Spring
10
Coil Spring
11
Coil Pin
12
Gun Housing Screws (2 pcs)
13
Pump Cylinder
Part No
Item
14
Piston
15
Piston Spring
16
Coil Locking Pin
17
Delivery Valve Cone
18
Delivery Valve Spring
19
Swirl Head (17, 18, 19 Form a Set)
20
Nozzle - Straight
20A
Nozzle - Adjustable
21
Solvent Jar
22
Suction Pipe With Filter
23
Conical Screw
24
Connector Block
25
Overflow Tube
26
Coil Bush
27
Switch Locking Ring
